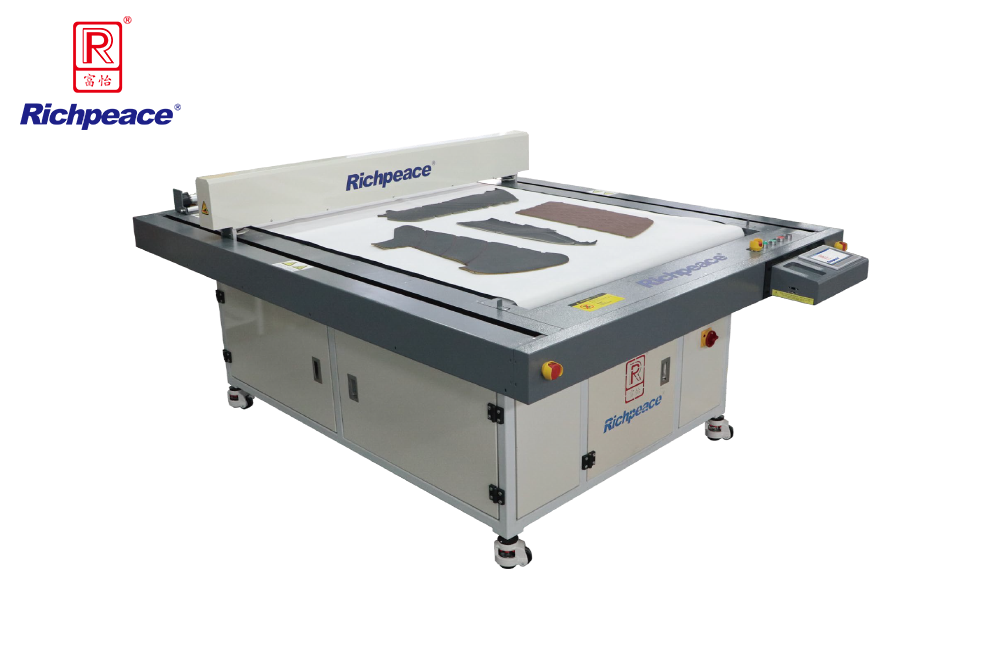

RPFP-NM-DI-1-1000×1200-SGSF-NA-1P220
RPFP-NM-DI-1-1500×1200-SGSF-NA-1P220
RPFP-NM-DI-1-2000×1200-SGSF-NA-1P220
RPFP-NM-DI-1-1500×1600-SGSF-NA-1P220
RPFP-NM-DI-1-2000×1600-SGSF-NA-1P220
RPFP-NM-DI-1-2500×1600-SGSF-NA-1P220
1. Adopt linear scanning mode, no need extra light compensation, all-weather reliable use.
2. Support one-button automatic scanning, simple and easy to operate.
3. Support ultra-long format scanning according to different models. Scanning speed up to 7200mm/minute.
4. Scanning resolution 150-300DPI, high definition panoramic 1:1 image to ensure effective identification of various contours/notches/inner holes.
5. According to physical samples, scanning height can be set by the touch screen to adapt different thickness material.
6. Background color can be switched quickly for different colors sample, which is flexible to response different material.
7. Output general DXF file format, compatible with most of CAD software in the market.
| Model | RPFP-NM-DI-1-1000×1200-SGSF-NA-1P220 RPFP-NM-DI-1-1500×1200-SGSF-NA-1P220 RPFP-NM-DI-1-2000×1200-SGSF-NA-1P220 RPFP-NM-DI-1-1500×1600-SGSF-NA-1P220 RPFP-NM-DI-1-2000×1600-SGSF-NA-1P220 RPFP-NM-DI-1-2500×1600-SGSF-NA-1P220 |
| Size | 1000×1200 1500×1200 2000×1200 1500×1600 2000×1600 2500×1600 |
| Speed | Max. 7200mm/min. |
| Power Supply | Single phase AC220V±10% 50/60Hz |
| Installation Area | 2300mm×1750mm×1300mm 2800mm×1750mm×1300mm 3300mm×1750mm×1300mm 2800mm×2150mm×1300mm 3300mm×2150mm×1300mm 3800mm×2150mm×1300mm |
