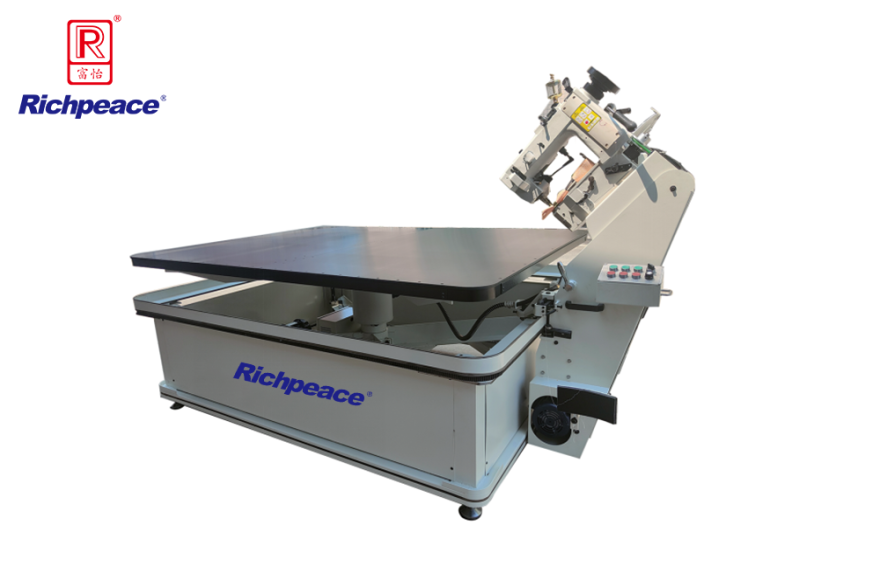

1. This series of machines are mainly used for completing tape edge sewing of mattress top and border, it's suitable for sewing of mattress, sofa cushion.
2. Main feature for the working table is electrically lifted and high-strength individual support, makes the working table more stable.
4. Built-in rotary electrical power supply column, no special require- ment for installation space.
Model | RP-A-WB | RP-B-WB | |||
Corner Auto-slowdown | YES | YES | |||
Sewing Head | Lock Stitch/Chain Stitch | Chain Stitch | |||
Head Operating Angle | 35°-55° | 35°-55° | |||
Sewing Area of Mattress thickness | 10- 480 mm | 10- 500 mm | |||
Worktable Lifting | Electric | Electric | |||
Worktable Size | 1600*2050mm 1800*2050mm | 1600*2050mm 1800*2050mm | |||
Sewing Head Speed (r/min) | 3000r/min | 3000r/min | |||
Motor Type | Single, Three-phase motor | Single, Three-phase motor | |||
Total Power | 1.12KW | 1.65KW |
| Model | RP-A/B-WB |
| Size | 1600*2050mm 1800*2050mm |
| Speed | 3000r/min |
| Power | 1.12KW/1.65KW |
